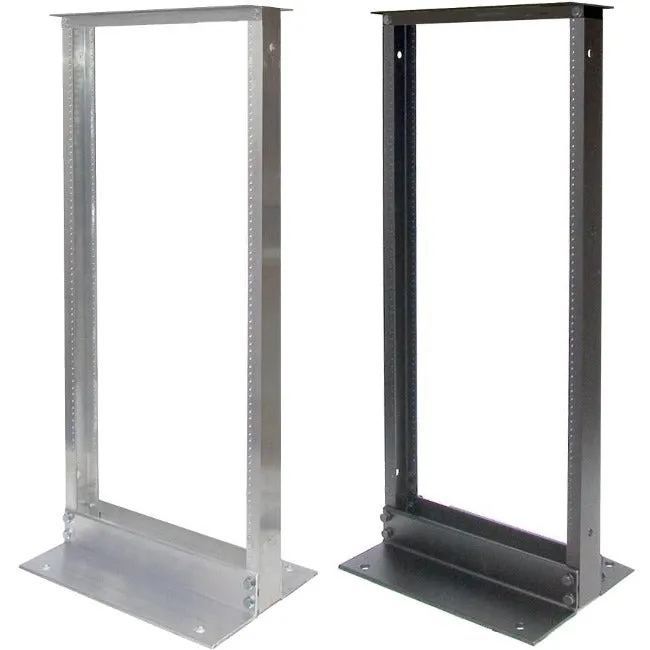

Rack Solutions Relay Rack 45U Black Finish 12-24 Threads 23" Wide

Our 2 Post Telco Rack is also commonly called a relay rack or simply telco rack. Two post racks are primarily used to install communication and network equipment. Computing equipment can be installed in 2post server racks with the use of specialized rail kits. These rail kits allow the equipment to be installed in either a center mount or a flush mount configuration. The standard rail kits can be used to install computing equipment in a two post server rack with the addition of a relay rack conversion kit.

2 Post Data Racks are manufactured using two different methods - the highest quality server rack posts are extruded. This means the aluminum is formed and not bent. The second method used to make 2 post open frame racks is to bend flat sheets of aluminum or steel. These open frame relay racks are of lesser quality than the extruded 2 post relay racks. All of our 45U and 24U server racks are made from extruded aluminum and are the highest quality available.

All of our open frame relay racks are knock down(flat-packed) and ship ready-to-assemble, making it easier to handle and store until needed.

We promise you're going to have a great experience. We'll help you figure out what you need, get it to you fast, and we'll stand behind it.

• High strength, 6005-T5 aluminum extrusion


• Floor mounting holes front and rear.


• Use 1/2" bolts with a large washer to mount to the floor.


• These relay racks must be anchored to the floor, wall or ceiling.

Product Type: Rack Frame
Environmentally Friendly: Yes
Environmental Certification: RoHS
Maximum Weight Capacity: 1000 lb
Product Color: Black Powder Coat
Product Material: Aluminum
Country Of Origin: United States
Assembly Required: Yes
Rack Width: 23"
Rack Height: 45U
Brand Name: Rack Solutions
Form Factor: Floor Standing
Manufacturer: Innovation First, Inc
Product Name: Relay Rack 45U Black Finish 12-24 Threads 23" Wide
Manufacturer Part Number: RELAY-RACK-45-B-12-23
Manufacturer Website Address:
Taa Compliant: No
Weight (Approximate): 30.49 lb
